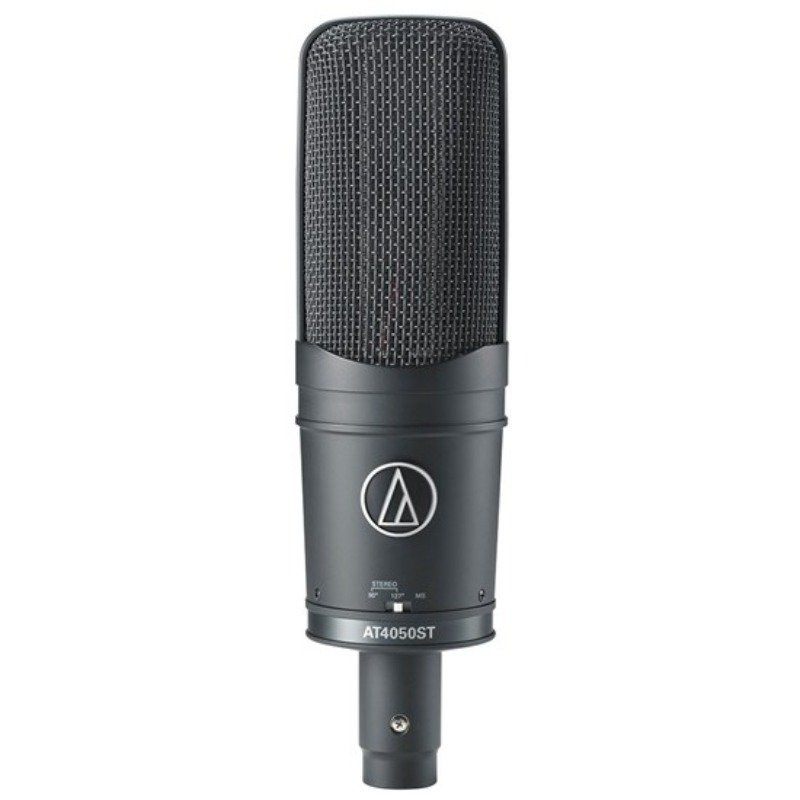

Audio-Technica AT4050ST Stereo Large-diaphragm Condenser Microphone

0 ★

(0)

26,623.00GH₵

In Stock

Product SKU: BDu4914r2N

Wishlist

Compare

Description
Technical Specs

Offering the realism of a live sound field, the AT4050ST is a side-address condenser with cardioid and figure-of-eight elements configured in a Mid-Side arrangement. This innovative stereo condenser allows sound recordists the choice of selecting a left-right stereo output or choosing discrete Mid-Side signals for later manipulation, a remarkable flexibility. The microphone’s dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range. Its transformerless circuitry virtually eliminates low-frequency distortion.

Innovative side-address Mid-Side stereo microphone engineered for professional recording, broadcast and sound reinforcement
Independent cardioid and figure-of-eight condenser elements
Switch selection of Mid-Side mode and two internally matrixed stereo modes
Dual-diaphragm capsules maintain precise polar pattern definition across the full frequency range of the microphone
Transformerless circuitry virtually eliminates low-frequency distortion and provides superior correlation of high-speed transients
The 2-micron-thick, vapor-deposited gold diaphragms undergo a five-step aging process so that the optimum characteristics remain constant over years of use
Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
Integral 80 Hz high-pass filter switch and 10 dB pad switch
State-of-the-art design and manufacturing techniques ensure compliance with A-T’s stringent consistency and reliability standards
Custom shock mount provides superior isolation
Certified by the METAlliance (Music Engineering and Technology Alliance)

Element	Externally-polarized (DC bias) condenser
Polar Pattern	Cardioid and Figure-of-eight
Frequency Response	20-18,000 Hz
Low Frequency Roll Off	80 Hz, 12 dB/octave
Open Circuit Sensitivity	Stereo 90°: -42 dB (7.9 mV) dB re 1V at 1 Pa Stereo 127°: -41 dB (8.9 mV) dB re 1V at 1 Pa Mid: -36 dB (15.8 mV) dB re 1V at 1 Pa Side: -36 dB (15.8 mV) dB re 1V at 1 Pa
