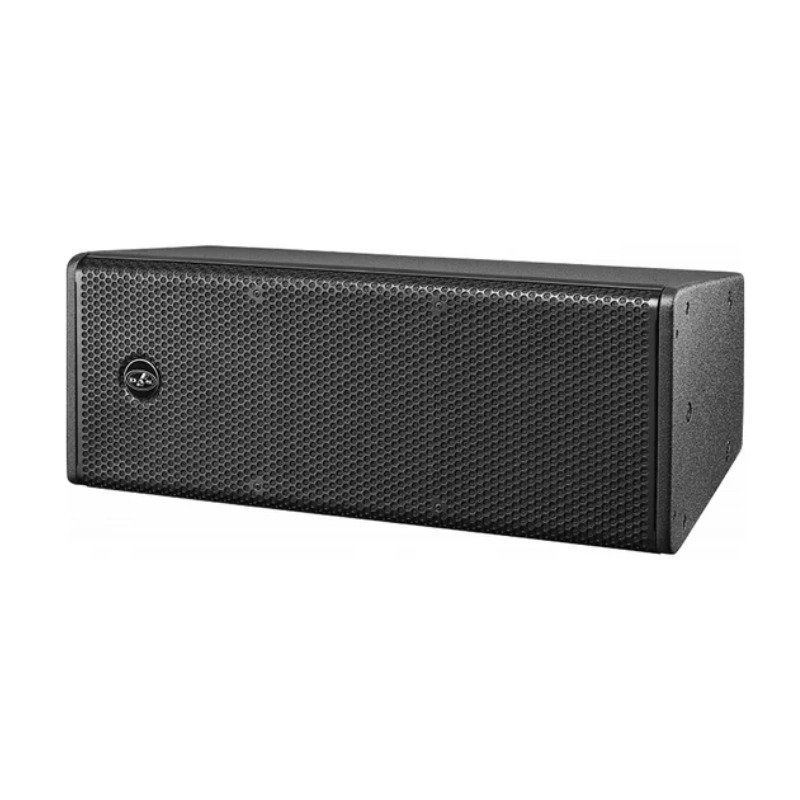

DAS ARTEC-320 2x10" 2-Way Passive Installation Line Array

0 ★

34,030.00GH₵

In Stock
  • Product SKU: Rct1078kkm
Sold By
Phasers Integrated Systems
Contact Us
The ARTEC-320 is a passive installation line array in a double 10” configuration. The DAS loudspeaker units has been teamed up with a single M-75 compression driver and purpose-designed injected aluminum high frequency waveguide.

The Artec-300 cabinets are constructed from Baltic Birch plywood and finished with a durable ISO-flex paint. The trapezoidal enclosure design helps eliminate standing wave coloration and at the same time, permits close-packed horizontal or vertical arrays.

The cabinet is manufactured using top quality Birch plywood and finished with a durable black paint finish. The JP-320 joining plates allow for an effective installation solution and are compatible with the ARTEC-322S subwoofer systems. The ARTTEC-320 is delivered with the joining plates.
Performance
Frequency Range (-10 dB)60 Hz – 20 kHz
Horizontal Coverage (-6 dB)90º
Vertical CoverageSplay Dependent
Nominal Impedance16 ohms
RMS Power Handling500 W
Peak Power Handling2000 W
On-axis Sensitivity 1W/1 m99 dB SPL
Maximum Peak SPL at 1 m132 dB
Recommended ProcessorINTEGRAL-M88
INTEGRAL-MA1604
INTEGRAL-MA1004
Connectors
Audio Input ConnectorCovered Barrier Strip Terminals
Audio Output ConnectorCovered Barrier Strip Terminals
Enclosure
Enclosure ConstructionBirch Plywood
Enclosure GeometryTrapezoidal
RiggingM10 Rigging Points
FinishISO-flex Paint
ColorBlack
Depth360 mm (14,2 in)
Dimensions ( H x W x D )345 x 710 x 360 mm
13,6 x 28,0 x 14,2 in
Net Weight26,5 kg ( 58,3 lb )
