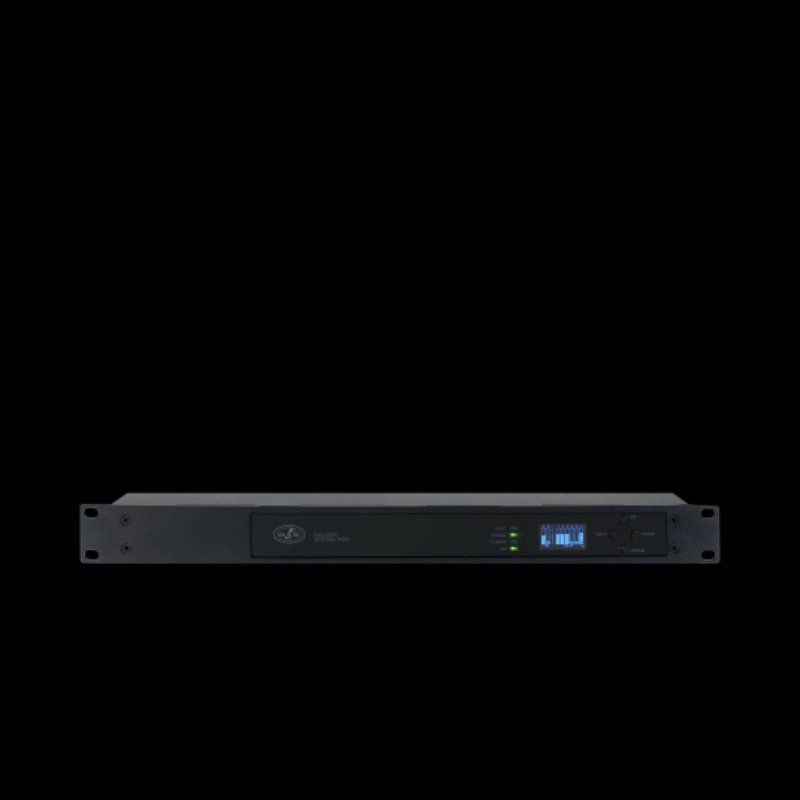

The INTEGRAL-M26X, a 1U rack-mount digital signal processor, features two analogue input channels and six analogue output channels equipped with balanced XLR connectors. Its compact, cost-effective design makes it a versatile choice for live and installed PA systems.
Remote control and monitoring are possible via ALMA™ software using IP technology, or alternatively, it can be managed using external controllers through OSC messages. Direct unit control is facilitated through a 1.54″ OLED display with control buttons for basic parameters. These include input and output levels, preset recalls, mute, source selection, and link manager functions.
The device houses a complete signal processing matrix, offering gain, delay, routing, equalization, and limiters adjustment options. Its internal memory can store over 100 global presets and 200+ output channel presets, including specific presets for all DAS Audio speakers.
External control is further simplified through a General-Purpose Input / Output (GPIO) connector, providing an external 3V3 volt, GND signal, and 8 configurable pins via ALMA™software.
